1630-ongoing
Serial Numbers:
2-years
Warranty Period:
CY-1X-K10-4Ch60V10A-CS
Item Number:
-
Four-channel battery cycler with FRA
-
Current range: ±10 A max
-
Voltage scan range: 0-60 V
-
EIS frequency range: 10 μHz - 10 kHz
-
Compatible with Windows, MacOS, and Ubuntu via the Squidstat User Interface software and Application Programming Interface
-
Multiple units can run simultaneously with other Squidstat models
-
The current range can be increased up to ±40 A by paralleling the channels
-
Made in USA
Description
40 Business Days ARO
Typical Lead Time:
Galvanostatic Electrochemical Impedance Spectroscopy (GEIS)
Potentiostatic Electrochemical Impedance Spectroscopy (PEIS)
Mott-Schottky (single-frequency and multi-frequency)
Experiments
Battery Capacity
Charge / Discharge (Constant C / Constant V)
Charge / Discharge (Constant R / Constant P)
Chronoamperometry
Chronopotentiometry
Constant Power
Constant Resistance
Cyclic Voltammetry (CV)
Differential Pulse Voltammetry (DPV)
Galvanostatic Intermittent Titration Technique (GITT)
Potentiostatic Intermittent Titration Technique (PITT)
Linear Sweep Amperometry
Linear Sweep Voltammetry (LSV)
Normal Pulse Voltammetry
Open Circuit Potential Monitoring
Rotating Ring Disk Electrode (RRDE)
Square Wave Voltammetry
Staircase Voltammetry
DC Experiments
AC Experiments
Output Parameters
DC Parameters
Working Electrode (V)
Working Electrode (mV)
DC Working Electrode (V)
DC Working Electrode (mV)
Counter Electrode (V)
Counter Electrode (mV)
Current (A)
Current (mA)
DC Current (A)
DC Current (mA)
Working Electrode vs. NHE (V)
Current Density (A/m2)
Current Density (A/cm2)
Power (W)
Cumulative Charge (mAh)
Cumulative Charge (C)
Capacity (mAh)
Energy (Wh)
State of Charge (%)
Depth of Discharge (%)
dQ/dV (mAh/V)
1 / Sqrt(time) (1/√s)
Resistance (Ohm)
No of Cycles
AC Parameters
Frequency (Hz)
Phase (deg)
|Z| (Ohms)
Z' (Ohms)
-Z'' (Ohms)
Z'' (Ohms)
Amplitude (A)
Amplitude (V)
Amplitude (mV)
Duration of Each Frequency (s)
No of Cycles
THD (%)
Serial ((1/C2)(1/µF2))
Serial ((1/C)(1/µF))
Parallel ((1/C2)(1/µF2))
Parallel ((1/C)(1/µF))
Additional Parameters
Temperature (Deg, °C)
PC Timestamp
UTC Time (s)
Accuracy Contour Plot (ACP)
Specifications
Specifications | Values |
|---|---|
Number of Channels Per Device | 4 Channels |
Physical Dimensions | Squidstat Cycler Unit: 23 x 17 x 6 cm,BIC-2200 Bi-Directional Power Supply: 33 x 14 x 10 cm |

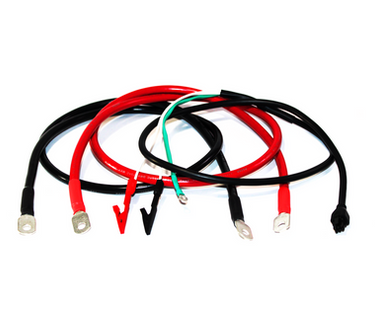

Cell Connections on Channel Cabling | 4-Terminal, Power + Remote Sense |
Channel Cable Length | 1 m |
Temperature Measurement | -55°C to 80°C Thermistor Per Channel (± 1.25°C Accuracy) |
Voltage Measurement Range | 0 - 60.0 V, 24-Bit Precision |
Compliance Voltage Range (at Device Terminals) | 0 - 62.0 V |
Voltage Accuracy | ± 6.0 mV Initial, ± 0.015% of Measurement Per Year |
Voltage Resolution | 3.85 µV |
Maximum Current | ± 10.0 A Per Channel |
Current Ranges | 3 Ranges (10.0 A/5.0 A/500.0 mA) |
Current Accuracy | 0.1% of Meas ± 19.50 mA/1.50 mA/250.0 µA |
Current Resolution | 0.1 ppm of Range (min 69.75 nA) |
Current Precision Settling Time (Step Change) | < 10 ms to 0.15% Typical, Load Dependent |
Current Paralleling | ± 40.0 A Maximum |
Max Source Power with Single Channel in Use | 600.0 W Per Channel |
Max Sink Power with Single Channel in Use | 600.0 W Per Channel |
Max Source Power when All Channels in Use | 600.0 W Per Channel |
(with All Channels Running at Equal Max Power) | 2.40 kW Per Device |
Max Sink Power with All Channels in Use | 600.0 W Per Channel |
(with All Channels Running at Equal Max Power) | 2.40 kW Per Device |
Idle Power Consumption | 4 W |
EIS Frequency Range | Per Channel: 10 µHz to 10 kHz |
EIS Impedance Range | Min 300.0 µOhm (≥ 10.0 A AC),Max 10.0 kOhm (≥ 1 V AC) |
EIS Voltage Amplitude For Best Accuracy | 30.0 mV to 30.0 V (DC ± AC < 60.0 V), (Limited to 500 mV Input Amplitude at 10 kHz Due to Slew Rate) |
EIS Current Amplitude Ranges,For Best Accuracy | 32.50 mA to 10.0 A (DC ± AC < 10.0 A),2.50 mA to 5.0 A (DC ± AC < 5.0 A), 250.0 µA to 500.0 mA (DC ± AC < 500.0 mA) |
Voltage Sense Line Impedance | 1.06 MOhm |
DC Sampling Rate | 2500 Samples/s Per Device |
Minimum Time Step | 500 µs |
Time Resolution | < 100 µs |
Rise Time | 5.2ms Typical (10%-90%, 6-54 V) |
Slew Rate | 1 kV/s DC, 30 kV/s Max AC |
